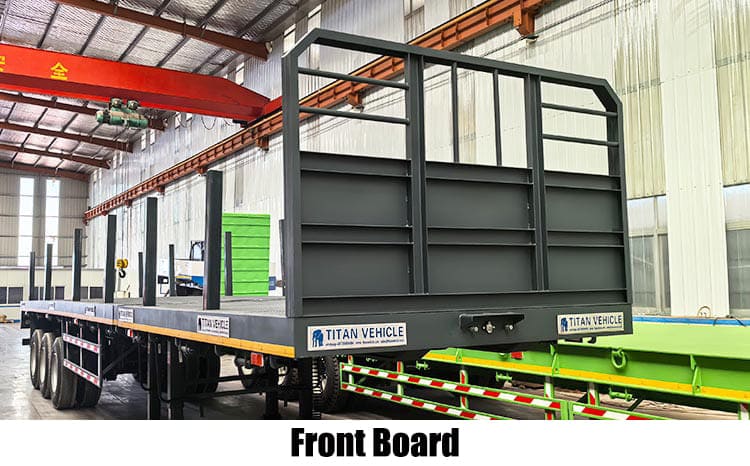

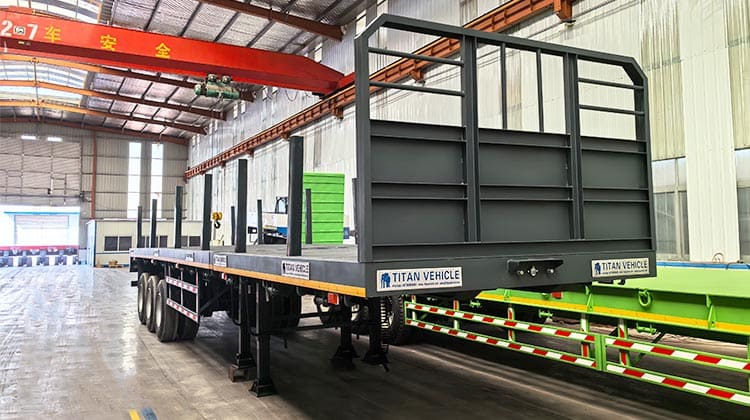

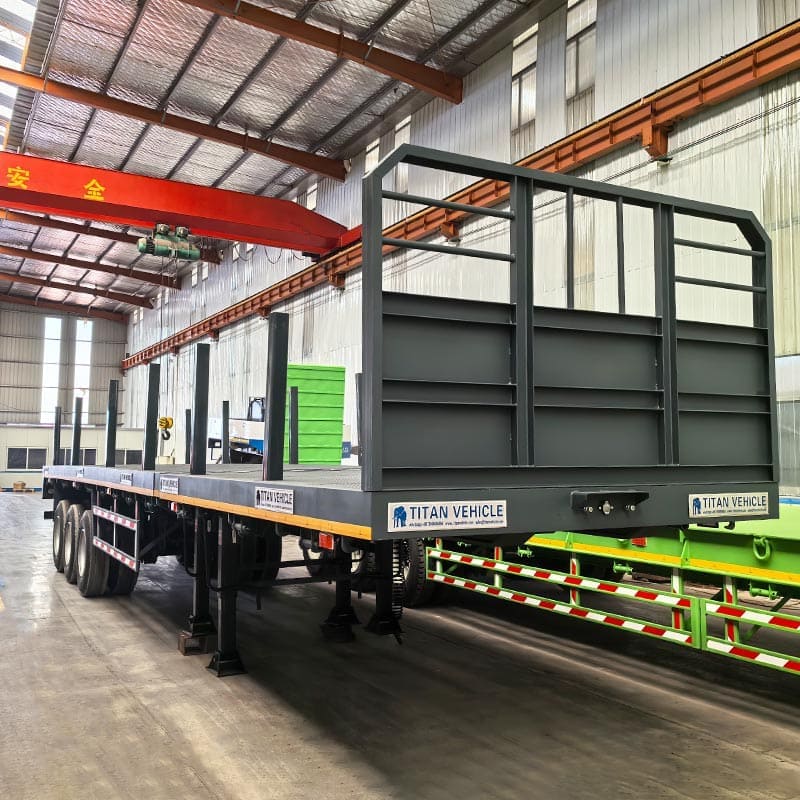

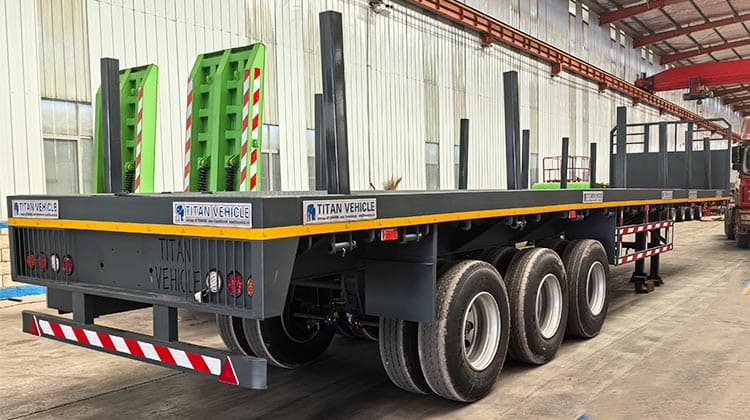

The extendable flatbed trailer with columns is particularly suitable for transporting various types of wood. Extendable flatbed trailer's adjustable columns can firmly fix logs, boards and other wood cargoes of different specifications to prevent displacement during transportation. The extendable platform of this extendable trailer for sale can flexibly expand the loading space to meet the transportation needs of extra-long wood.
The 25m extendable flatbed trailer for sale in Guyana is an extended transport equipment equipped with a column device. The platform length can be flexibly adjusted through the pulling mechanism, and the column design can effectively fix containers and various large goods.
25m Extendable Flatbed Trailer for Sale in Guyana
25m Extendable Flatbed Trailer for Sale in Guyana
25m Extendable Flatbed Trailer for Sale in Guyana
25m Extendable Flatbed Trailer for Sale in Guyana

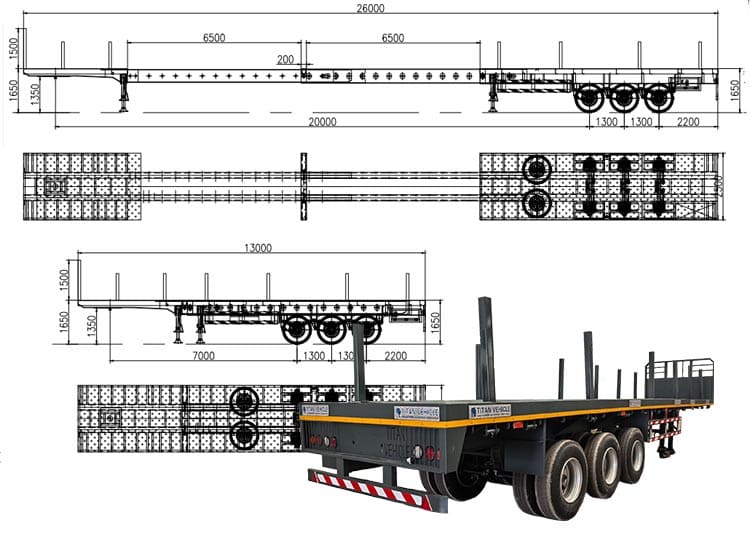

Closed length: 13000mmX2500mmX1650mm
Total length: 26,000mm after extension
Loading capacity: 60 Ton
Platform thickness: 3 mm
Hydraulic power station: Diesel engine
Axle: 3 axle
Suspension: Hydraulic suspension

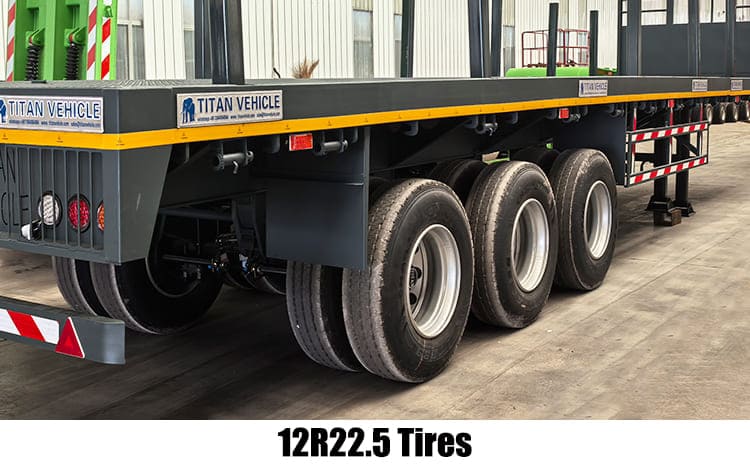

Tire: 12 units
Braking system: WABCO emergency valve
Kingpin: 3.5 inch

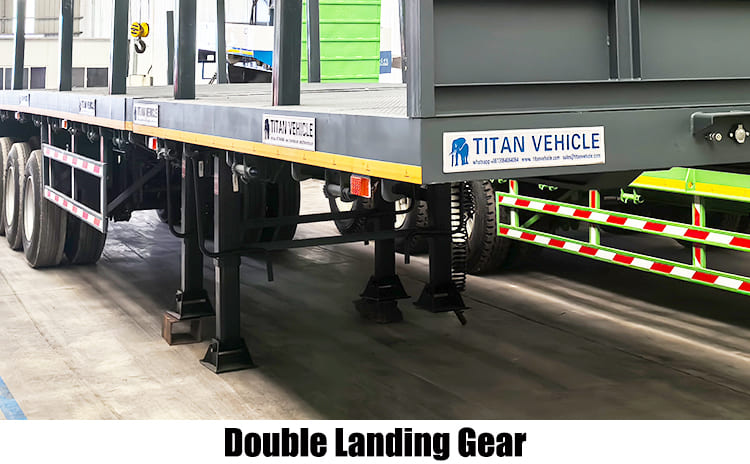

Landing gear: JOST

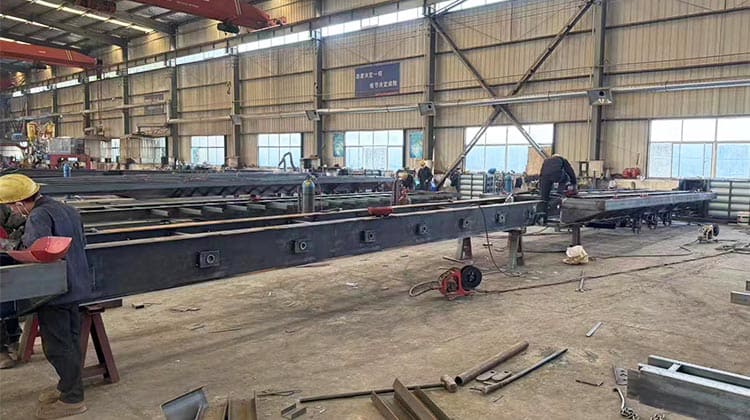

The production process of the extendable flatbed trailer for sale includes precise debugging of the extendable mechanism and the column locking device, and verifying the load bearing performance through load testing, and finally completing the anti corrosion spraying and compliance testing before leaving the factory.
The 25m extendable trailer for sale in Guyana demonstrates many advantages in the field of logistics transportation. Both its overall performance and key components have unique highlights.
In terms of overall performance, the structure of the extendable flatbed trailer for sale is very well designed. Extendable trailer for sale in Guyana uses modular design, which not only allows the vehicle to be quickly assembled and disassembled, but also enables flexible adjustment of the length and height according to different transportation needs. This greatly improves transportation efficiency. Moreover, the body frame made of high strength steel, combined with a scientifically sound mechanical structure, gives the 25m extendable flatbed trailer for sale a strong load bearing capacity and ensures the stability and reliability of the vehicle during transportation.
The key components also have significant advantages:
Pillars: The pillars, made of high strength steel, can stably support the entire structure of the 25m extendable trailer for sale in Guyana Even when transporting large goods, they can effectively distribute the weight of the goods and prevent the extendable flatbed trailer for sale from deforming or tipping over.
Extendable mechanism: The extendable mechanism of extendable flatbed trailer for sale in Guyana uses a hydraulic or mechanical transmission system, which is very flexible to operate. It can quickly adjust the length of the cargo box to meet the transportation needs of goods of different sizes. This makes the 25m extendable trailer for sale able to handle various complex transportation scenarios with ease.
Flatbed: The flatbed of the 25m extendable flatbed trailer for sale in Guyana is made with anti-slip materials and reinforced with ribs. It can both prevent goods from sliding during transportation and effectively distribute the weight of the goods.
Suspension system: The independent suspension system of extendable flatbed trailer for sale is equipped with shock absorbers, which can effectively cushion the bumps on the road. This reduces the damage to goods during transportation and also improves the stability and comfort of the extendable trailer for sale in Guyana.
Welcome to contact us for more information
