End dump semi trailer are specially designed for the transportation of bulk goods, and are widely used in agricultural product distribution, construction material transportation, and logistics and freight centers. With the hydraulic lifting rear-dump structure, these end dump trailer allow for quick and automatic unloading of goods，while ensuring the safety and stability of the cargo during transportation.
4 Axle End Dump Semi Trailer for Sale in Guyana
The frame of this end dump semi trailer is made of Q345 high strength alloy steel, which has a yield strength of more than 355MPa. By combining reinforced longitudinal beams and anti-torsion crossbeams, the end dump semi trailer forms a stable load-bearing framework that avoids deformation even when fully loaded.
Even when transporting 60 tons of bulk goods, the end dump trailer frame remains stable without bending. The static load test of this end dump semi trailer reaches 150% of the designed load, and its impact resistance on the bumpy rural roads and mining areas in Guyana, tested dynamically, exceeds industry standards by 35%.
4 Axle End Dump Semi Trailer for Sale in Guyana
4 Axle End Dump Semi Trailer for Sale in Guyana
4 Axle End Dump Semi Trailer for Sale in Guyana
4 Axle End Dump Semi Trailer for Sale in Guyana
4 Axle End Dump Semi Trailer for Sale in Guyana

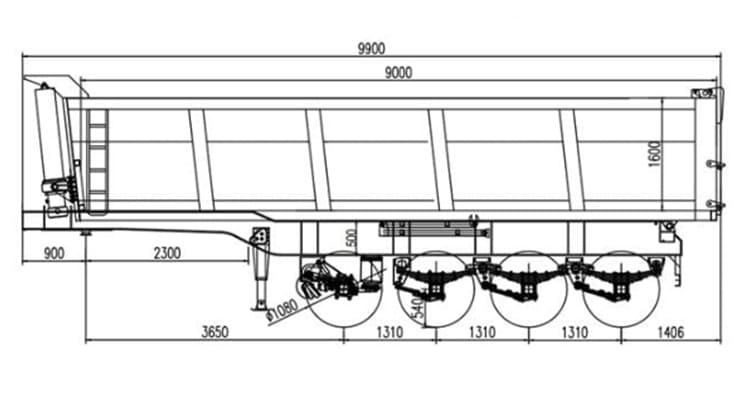

Overall dimension: 9900mm * 2500mm *3700mm
Volume: 40cubic
Axles: 4 axles
Suspension: Heavy duty mechanical suspension

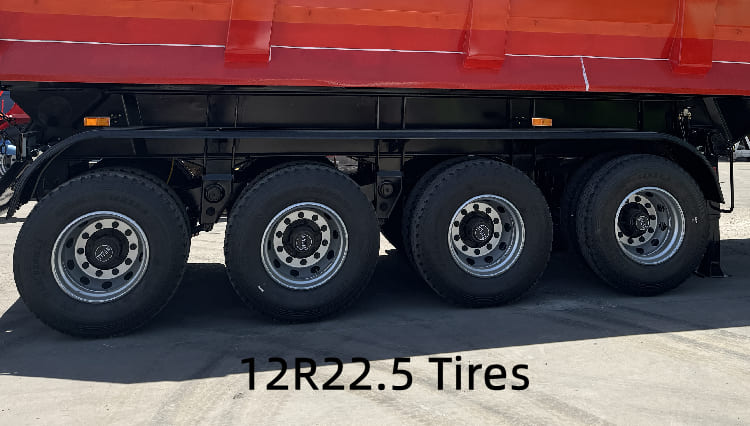

Tire: 16 units
King pin: 90#
Landing gear: JOST
Brake system: WABCO
Electrical system: 24V, LED lights
4 Axle End Dump Semi Trailer for Sale in Guyana
The dump body of this end dump semi trailer is made of wear-resistant manganese steel plates , which are thick yet lightweight, and have strong resistance to impact and abrasion. This durability allows for long-term transportation of high-wear goods—whether it’s bulk agricultural products like sugarcane and rice, or heavy construction materials such as gravel and cement. For Guyana’s frequent rainy and humid seasons, the dump body is treated with anti-rust coating, preventing corrosion and extending the service life of the end dump trailer.
The frame of the end dump semi trailer adopts integral robotic welding technology, with the main beam using a U-type cross section design that enhances overall torsional resistance. Connected by multiple high-strength transverse support beams, it forms a solid load bearing structure that can withstand the continuous impact of bumpy rural roads and mining trails in Guyana. All welding joints are inspected by ultrasonic testing, ensuring no hidden cracks or defects. This robust design ensures the end dump trailer maintains stable performance even after long-term use in harsh transportation environments.
The end dump semi trailer for sale in Guyana is divided into three independent modules: the frame module, the hydraulic dump module, and the braking module, with standardized interfaces between each module. When a component needs repair or replacement, only the corresponding module needs to be disassembled, avoiding the hassle of disassembling the entire end dump semi trailer and greatly simplifying maintenance procedures.
Additionally, the end dump semi trailer supports personalized customization—customers can add anti spill plates to prevent goods from leaking during transportation, or adjust the dump angle (35°-45°) to adapt to different unloading scenarios, fully meeting the diverse needs of local agricultural, construction, and mining transportation.
LED warning lights with reflective tapes are installed around the entire body of the end dump semi trailer. These lights have strong penetration, ensuring the end dump trailer remains visible to other vehicles even in dim light, heavy fog, or rainy weather—common conditions in Guyana’s rural and mining areas. The tires of the end dump semi trailer feature a deep off-road tread pattern that enhances friction with the road surface. This design provides excellent grip on muddy rural roads and uneven mining sites, reducing the risk of slipping and ensuring safe transportation even in challenging road conditions.
Moreover, the 4 axle end dump semi trailer durable structure and anti-corrosion design minimize the frequency of repairs and part replacements, significantly cutting down long-term operational costs for businesses and individual users in Guyana.
Welcome to contact us for more information
