Sino Howo 12w Dump Truck

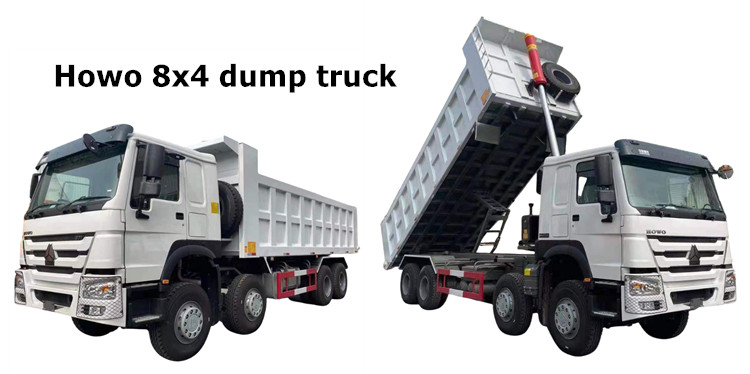

Sinotruk howo 8x4 dump truck in Guyana:

Howo dump truck for sale is suitable for in harsh environments, unloading and transport ore and others. Sino howo dump truck near me in Guyana own the elegant appearance, strong operation system and excellent safety.

You can choose howo 12w dump truck with front lifting type or middle lifting type which you preferred. The hydraulic sytem using HYVA brand or Domestic famouse brand. The optimized hydraulic control system helps to avoid wrong operation, it has higher safety and running efficiency.

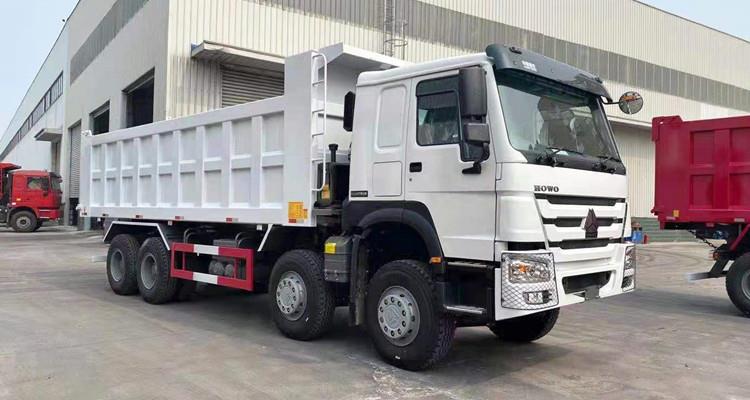

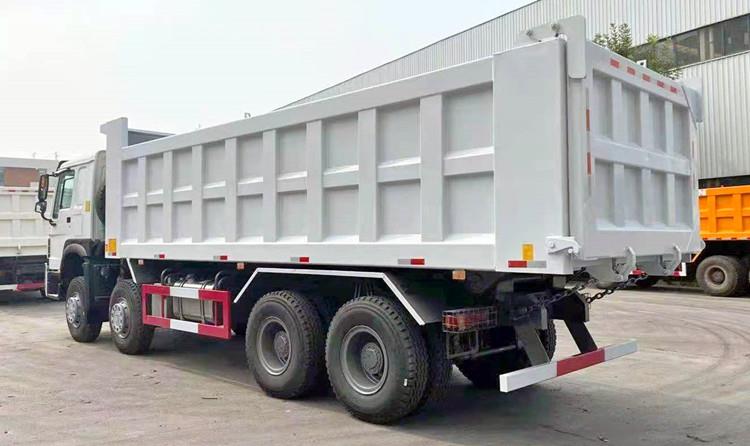

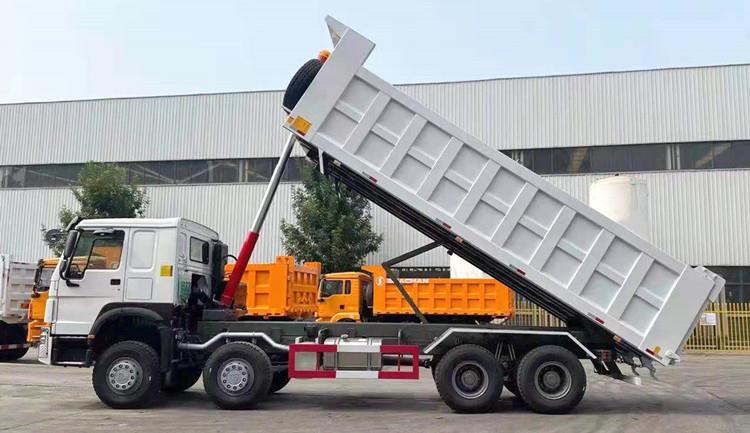

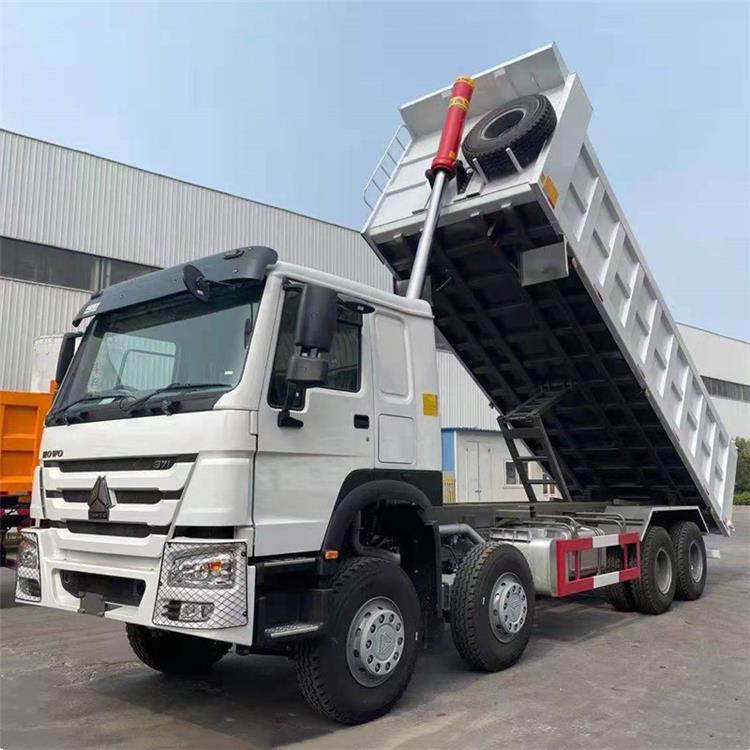

Sinotruk Howo 8x4 12w Dump Truck for Sale Near Me in Guyana Bartica

Sinotruk Howo 8x4 12w Dump Truck for Sale Near Me in Guyana Bartica

Sinotruk Howo 8x4 12w Dump Truck for Sale Near Me in Guyana Bartica

Specification of howo 12w dump truck:

MODEL: ZZ3317N3567W

ENGINE:

Engine model: WD615.47, Euro II emission standard, 4 stroke injection diesel engine, 6 cylinder in-line with water

cooling, turbo-charging & inter cooling, mechanical high pressure oil pump system

Maximum output: 371PS (273kW) at 2000 rpm

Maximum torque: 1560Nm at 1200-1500rpm

Bore: 126mm

Stroke: 130mm

Displacement: 9.726L

CLUTCH: SINOTRUK’s 430C diaphragm spring clutch, hydraulically operating with air assistance

TRANSMISSION: Transmission, model HW19710, 10 forward and 2 reverse  Ratio: 5.73

FRONT AXLE: New HF9 series, with drum brake system

REAR AXLE: HC16 pressed axle housing, single reduction and differential locks between axles; with drum brake system.

STEERING: ZF8118, hydraulic steering with power assistance  Ratio: 22.2-26.2:1

WHEELS&TYRES:

Rims: 8.5-20,10 hole-steel

Types: 12.00R20

CARGO BODY: 7300*2300*1500, bottom 8mm, side 6mm, Front lift system (Other sizes are optional)

DRIVER CAB:

Long cab, all steel forward control, 55°hydraulic tilting to the front, 2-arm windscreen wiper system with 3 speeds, adjustable co-driver’s seat, heating & ventilation system, with stereo radio/cassette recorder, sun visor, safety belt, air conditioner

DIMENSIONS(in mm):

Wheel base (mm): 1800+3500+1350

Front wheel track (mm): 2022/2041

Rear wheel track (mm):1830/1830

Overhang(front/rear) (mm):1500/2295

Approach angle(°):19

Departure angle(°):20

Overall Dimension (mm):11745x2496x3550

WEIGHT(in kg):

Permissible loading capacity (kg):16000

Dead weight (kg):15000

Gross vehicle weight (kg):31000

Front axle loading capacity (kg):2*9000

Rear axle loading capacity (kg):2*16000

PERFORMANCE:

Maximum driving speed(km/h):75(reference data)

Maximum gradeability (%):36

Minimum ground clearance(mm):314

Minimum turning radius (m):15

Fuel consumption(L/100km):40(reference data)

Advantages of sino howo dump truck near me:

Weichai WP10H400E62 engine is the heart of this howo dump truck for sale. This inline six-cylinder turbo diesel engine is with a displacement of 9.5 liters.It’s maximum output a is  294KW and power of 400 horsepower. The maximum torque is 1900 Nm and the maximum torque. The maximum torque speed is 1200-1300 rpm, and the rated speed is 1900 rpm

This engine uses high-efficiency SCR after-treatment technology. Unlike most engines use EGR system. It’s entire after-treatment mainly relies on DOC + DPF + high-efficiency SCR.
