The container trailers is specially designed for the complex road conditions in Africa, which can well meet the needs of customers. Customers can choose according to their own needs to change how many locks that may.
Container chassis manufacturers TITAN girder gooseneck lower vertical plate reinforcement, gooseneck double-layer girder vertical plate. The deformation of the shipping container trailer is very small when it is heavily loaded.

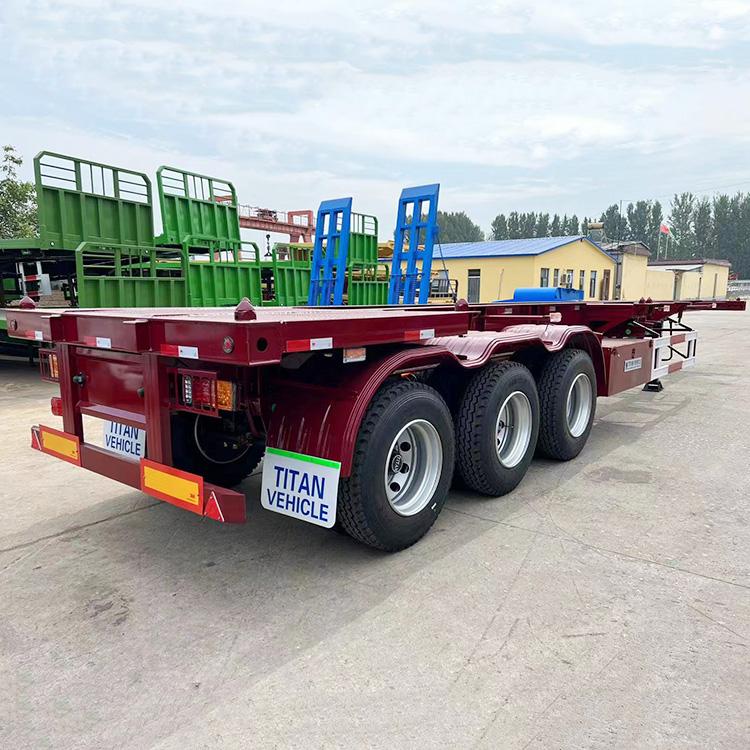

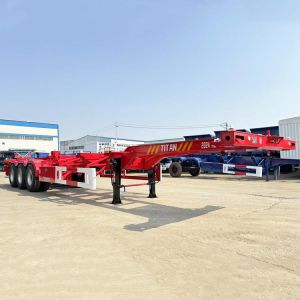

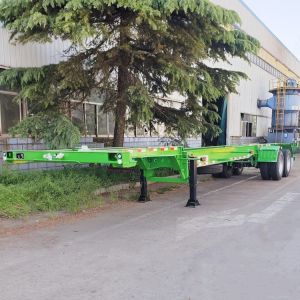

Shipping Tri Axle 40 ft Container Chassis Trailer for Sale Manufacturers in Guyana
Shipping Tri Axle 40 ft Container Chassis Trailer for Sale Manufacturers in Guyana
Shipping Tri Axle 40 ft Container Chassis Trailer for Sale Manufacturers in Guyana
Shipping Tri Axle 40 ft Container Chassis Trailer for Sale Manufacturers in Guyana
Dimension(mm): 12500x2500x1500mm
Loading capacity(ton): ≤60T
Axles: 3 axles, 13T/16T ,FUWA/ BPW/ TITAN Brand
Tire: 12 units, 12.00R22.5 or 315/80R22.5
Rim: 9.00-22.5 or 9.75-22.5
Here are a few more important points below:
(1) Frame of container chassis trailer.
The frame part is the main load bearing part, which is composed of beam, side beam and floor.
The thickness of the 40 ft chassis for sale beam part depends on whether the thickness is an international standard. The international standard for the frame of the shipping chassis is 14/8/16 mm. The 40 ft container chassis for sale material of the steel plate in the middle of the beam is Q345B or manganese steel with a thickness of 8mm. Many unreliable suppliers will use 6mm Thickness beam slabs to save costs, but the carrying capacity was reduced by 26%. The international standard thickness of the middle part of the beam must be 8mm.
(2) Axle of the container trailers.
The axles of the container chassis manufacturers are divided into three types: 13 ton axles, 13 ton axles + 16 ton brake system axles, 16 ton axles.
The axles of the container trailer for sale are 13 ton container skeletal trailer axles + 16 ton brake system axles. The braking performance is better, and the braking distance is shortened by more than 5 meters.
(3) Tire of the tri axle chassis.
The tri axle chassis uses a vacuum tire with better heat dissipation performance, the model is 12R22.5.
The shipping container chassis uses factory-made, wear-resistant tires. On Chinese highways, TITAN 40 ft chassis for sale tires can reach more than 300,000 kilometers.
Welcome to contact us for more information
