Tri Axle Trailer with Drop Side

Tri Axle Trailer with Drop Side

12500 USD

Drop side trailer in Guyana usually has a large loading space and a high tonnage. Its frame is made of high-strength steel and can withstand heavier cargo weight.

The rated load of a drop side semi trailer for sale in Guyana can reach tens of tons, which makes it have obvious advantages in transporting large quantities of cargo.


SKU:
GTIN:
MPN:
Brand: TITAN

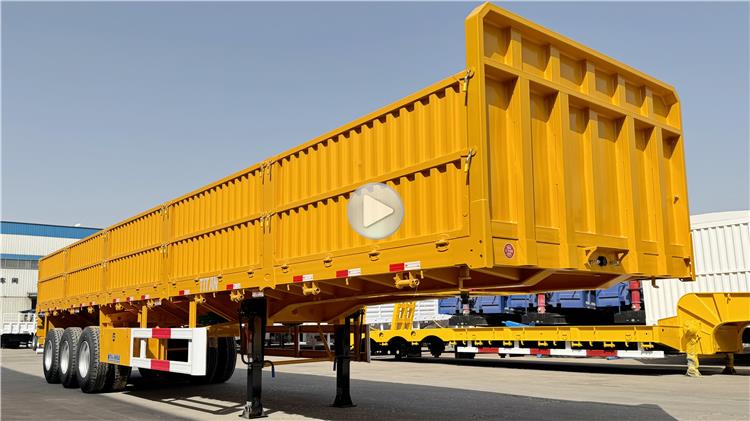

Video of Drop Side Semi Trailer

Tri Axle Trailer with Drop Side Semi Trailer for Sale in Guyana

2025 Best Tri Axle Trailer Drop Side Semi Trailer Sales Promotion

Tri Axle Trailer with Drop Side Semi Trailer for Sale in Guyana

Tri Axle Trailer with Drop Side Semi Trailer Price: 12500 USD

Drop side trailer in Guyana uses low carbon high strength alloy steel Q345 to manufacture the main beam, and we use automatic submerged arc welding process to weld the main beam. Since there is no seam between the upper, middle and lower plates of the beam, the integrity of the main beam can be ensured, and the beam is more durable, with higher load-bearing capacity and a service life of more than 10 years.

The main beam of the drop side semi trailer for sale in Guyana is 14mm thick and 140mm wide on the top, 16mm thick and 140mm wide on the bottom, 500mm high in the middle, and 500mm high in thickness.

Tri axle trailer with drop sides in Guyana adopts a reinforced double-plate structure for the lower plate at the gooseneck position of the main beam, and a double-plate structure for the middle beam. The deformation range of the trailer is smaller when overloaded, making it more suitable for use.

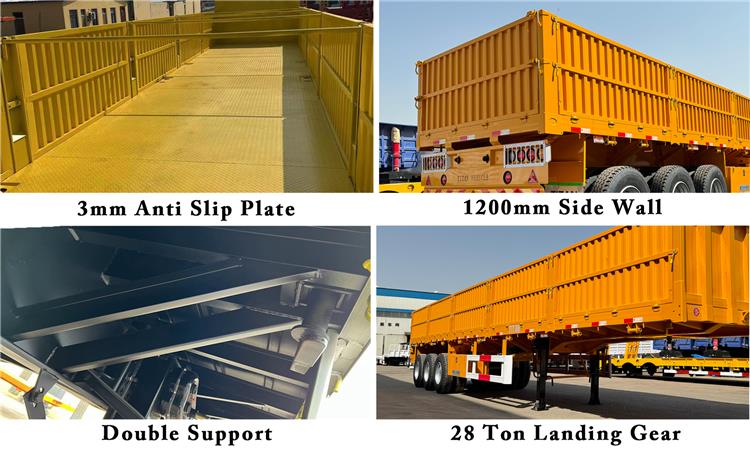

The side beams we make are 160mm thick channel steel, the cross beams are 100mm thick channel steel, and all the cross beams are supported by diagonal support frames with a spacing of no more than 500mm between them, which ensures that the trailer is not easily deformed. Our traction plates are all lengthened and thickened, and have stronger torsion resistance. The bottom plate is 3mm thick and is a diamond plate.

Tri Axle Trailer with Drop Side Semi Trailer for Sale in Guyana

Tri Axle Trailer with Drop Side Semi Trailer for Sale in Guyana

Tri Axle Trailer with Drop Side Semi Trailer for Sale in Guyana

Tri Axle Trailer with Drop Side Semi Trailer for Sale in Guyana

Tri Axle Trailer with Drop Side Semi Trailer for Sale in Guyana

Tri Axle Trailer with Drop Side Semi Trailer for Sale in Guyana

Tri Axle Trailer with Drop Side Semi Trailer for Sale in Guyana

Tri Axle Trailer with Drop Side Semi Trailer for Sale in Guyana

Tri Axle Trailer with Drop Side Semi Trailer for Sale in Guyana

Tri Axle Trailer with Drop Side Semi Trailer for Sale in Guyana

2025 Best Tri Axle Trailer Drop Side Semi Trailer Sales Promotion

Tri Axle Trailer with Drop Side Semi Trailer for Sale in Guyana

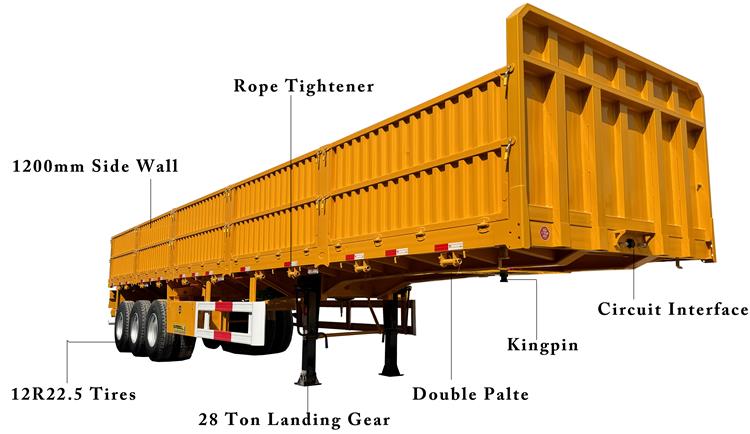

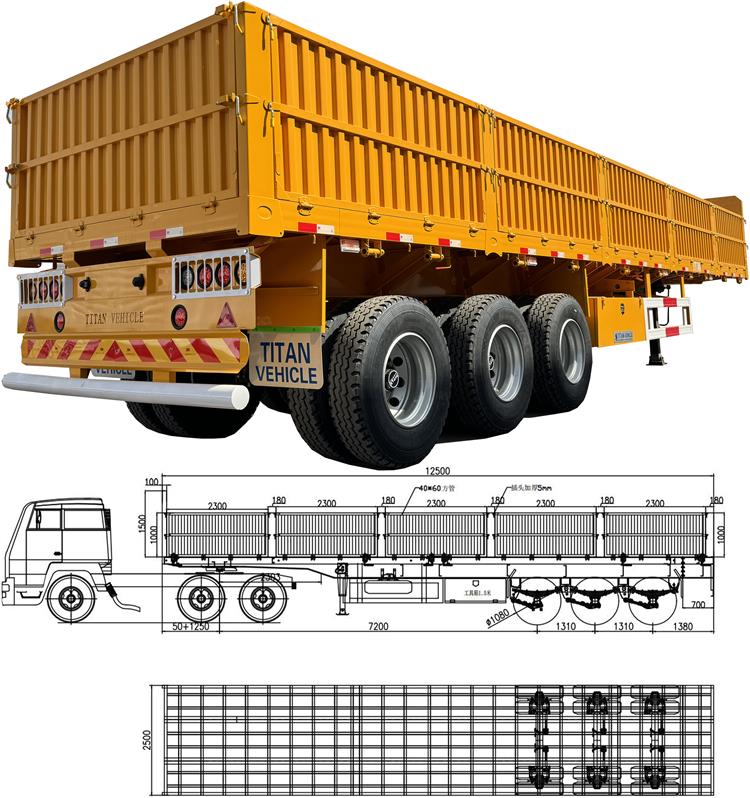

Specification of Drop Side Semi Trailer

Tare Weight: About 7.6T

Dimension(mm): 12500x2800x3260mm

Trailer Sides: 1200mm

Loading capacity(ton): ≤60T

Axles: 3 axles, 13T/16T,ITAN Brand

Tire: 12 units, 12R22.5

Suspension: Mechanical suspension

King Pin: JOST brand 2.0 or 3.5 inch (bolted or welded)

Landing Gear: JOST brand D200T or Chinese brand 28tons

Side Beam: 16mm or 18mm steel channel

Bottom Platform: 3mm-thick checkered plate

Twist Locks: 4,8,12 sets

Valve: WABCO valve

Light: LED light

Socket(Receptacle): 7-pin Socket

Tri Axle Trailer with Drop Side Semi Trailer for Sale in Guyana

2025 Best Tri Axle Trailer Drop Side Semi Trailer Sales Promotion

Tri Axle Trailer with Drop Side Semi Trailer for Sale in Guyana

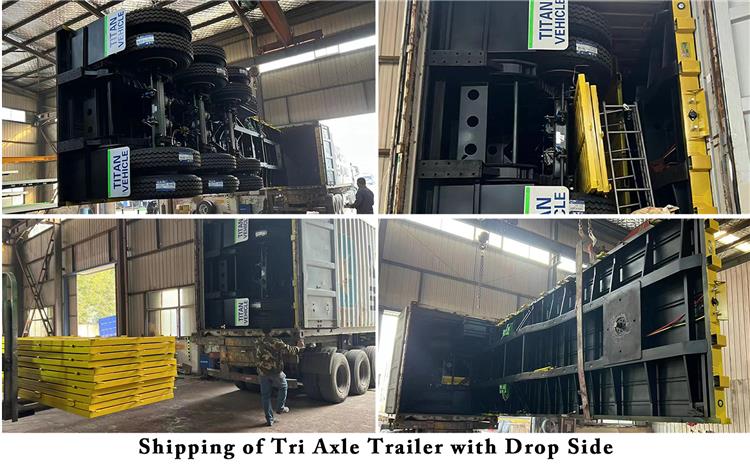

Shipping of Drop Side Trailer

TITAN has extensive experience in packaging and bulk cargo transportation. Drop side trailer in Guyana is loaded with containers. Each 40-foot container can load two drop side semi trailers for sale

If the customer insists on bulk transportation, we will spray a thick layer of wax on the drop side trailer in Guyana to reduce the erosion of seawater on the trailer during transportation. After spraying the wax, we will wrap the body with rain cloth, which is also to reduce the erosion of seawater on the tri axle trailer with drop sides in Guyana during transportation.

Tri Axle Trailer with Drop Side Semi Trailer for Sale in Guyana

2025 Best Tri Axle Trailer Drop Side Semi Trailer Sales Promotion

Tri Axle Trailer with Drop Side Semi Trailer for Sale in Guyana



Advantage of Drop Side Trailer

Drop side trailer in Guyana has 6 bottom beams under the bottom plate, which effectively ensures the flatness of the bottom plate, so that the bottom plate will not be easily deformed even after long-term use.

We use powder spraying and baking paint for all trailers. This process has strong adhesion, brighter colors, and costs twice as much as ordinary acid paint, but it will not peel off after more than five years of use.

The square tubes of the side panels of drop side semi trailer for sale in Guyana are made of the latest high-strength square tube 5*5 model, which is high in strength and does not expand. Even if it is deformed, it will quickly return to its original position. Ordinary square tubes will be damaged immediately when they are hit during unloading. High-strength square tubes are extremely strong and collision-resistant.

All the columns of drop side trailer in Guyana are equipped with horizontal tie rods, which are removable to prevent deformation and expansion. The columns are thickened, and the plugs and plugs are bent from 8mm thick steel to ensure absolute firmness! And they are equipped with bolts to tighten the columns to prevent loosening.

The side panels of drop side semi trailer for sale in Guyana are automatically welded by robots, which are beautiful and firm. The vertical corrugations of the side panels are also pressed with high-strength plates, which are stronger. Tri axle trailer with drop sides in Guyana uses 5*5 high-strength square tubes. You can also choose the JOST brand landing gear, which is a very famous brand accessory.

The suspension system of drop side trailer in Guyana adopts a reinforced design, using a 70 mm center balance pin. The front and rear ends, left and right sides of the suspension system are reinforced. In view of the road conditions in Africa, special attention is paid to solving the problems of muddy and poor road conditions.

Tri axle trailer with drop sides in Guyana uses a light suspension with a center pin of only 45 mm, which will result in a shorter service life and serious wear of tires. For axles, our standard configuration is 13 tons of axle weight with 16 tons of brake pads, which has a stronger load-bearing capacity and good braking effect.
